How RFID Tags Conquer Metal Surface Interference

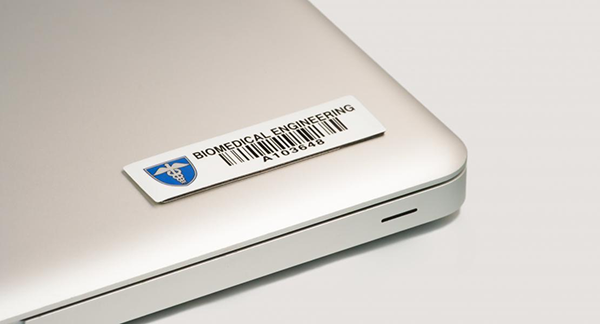

In industrial automation, healthcare asset tracking, and automotive manufacturing, the integration of RFID technology with metal surfaces has long been a technical hurdle. While RFID systems promise real-time inventory visibility and operational efficiency, their performance on metallic objects—ranging from surgical instruments to warehouse racks—has historically been compromised by electromagnetic interference. Recent breakthroughs in anti-metal RFID tag designs, however, are reshaping this landscape.
The Core Challenge: Metal as an Electromagnetic Barrier
Metals reflect and absorb radio waves, creating a "dead zone" for standard RFID tags. When placed directly on metal surfaces, three primary issues emerge:
Signal Attenuation: Metals act as mirrors, reflecting RFID signals and reducing the energy available to activate tag chips. Tests show that without anti-metal measures, read success rates on metal plummet to 30–50%, compared to 95%+ on non-metallic surfaces.
Signal Attenuation: Metals act as mirrors, reflecting RFID signals and reducing the energy available to activate tag chips. Tests show that without anti-metal measures, read success rates on metal plummet to 30–50%, compared to 95%+ on non-metallic surfaces.
Frequency Misalignment: Metals alter the electromagnetic field’s resonant frequency, causing mismatches between tag antennas and reader systems. For instance, a hospital’s stainless-steel surgical trays caused a 42% error rate in RFID tool tracking.
Eddy Current Heating: High-frequency electromagnetic fields induce eddy currents in metals, generating heat that can damage tags or drain battery life in active systems.
Innovative Solutions: From Physical Barriers to Smart Antennas
To counter these challenges, RFID tag manufacturers have developed specialized anti-metal RFID tags with three key strategies:
1. Dielectric Spacers: The Low-Cost Shield
By inserting a layer of non-conductive material (e.g., foam, plastic) between the tag and metal, signals are redirected away from reflective surfaces. This method, costing as little as $0.30 per tag, boosted read success rates from 45% to 92% in a car parts factory trial. However, it requires maintaining a 5–10mm gap, limiting use in compact packaging.
2. Absorptive Materials: Neutralizing Reflections
Tags embedded with iron-based ferrite sheets absorb stray electromagnetic waves, reducing interference. A third-party test revealed that ferrite-backed tags achieved a 1.2-meter read range on metal (vs. 1.5 meters on plastic), with error rates below 2%. This approach is favored in healthcare, where a hospital upgraded to ferrite-enhanced tags for stainless-steel trays, cutting manual inventory checks by 120 hours annually.
3. Advanced Antenna Designs: Reengineering for Metal
U-Shaped Antennas: These structures focus energy vertically, penetrating metal edges. A logistics firm deployed U-shaped tags on metal pallets, achieving 98% read accuracy during high-speed conveyor scans.
Planar Inverted-F Antennas (PIFAs): By using the metal surface as a ground plane, PIFAs convert reflections into usable signals. Tests show they outperform dipole antennas in narrow spaces, such as IT equipment racks.
Near-Field Coupling: For embedded applications (e.g., screws, medical devices), miniaturized coil antennas leverage magnetic fields to bypass metal barriers. A medical device company achieved 100% traceability for sterilized instruments using tags embedded in handle recesses.
Industry Adoption: From Trials to Transformation
Leading providers like Zebra Technologies and Confidex now offer turnkey solutions. Zebra’s ZT411 printer encodes anti-metal Silverline labels in four sizes, supporting read ranges up to 10 meters. In automotive manufacturing, this technology reduced asset (inventory checks) time from 3 hours per machine to 9 seconds, with a 99.8% accuracy rate.
Healthcare is another frontier. A hospital system replaced barcode scans with RFID-tagged metal trays, cutting surgery setup times by 30% and eliminating $120,000 in annual labor costs.
Future Horizons: Beyond Tracking
Emerging innovations include:
Self-Powered Metal Tags: Harvesting energy from eddy currents to power sensors monitoring metal stress or temperature.
AI-Tuned Readers: Dynamically adjusting antenna parameters to optimize performance in mixed metal/non-metal environments.
