Model No: 70*20mm
70*20mm Qstar-6S HF+UHF Laundry Tag
The HF+UHF laundry tag has a unique global identification code,by sewing a dual frequency laundry tag on each piece of linen.This dual frequency laundry tag is not limited to traditional RFID devices,it can also be effortlessly read by any NFC-enabled mobile phone.
minimum order :
1 piece
Quantity :
Subscribe to our Newsletter
The HF+UHF laundry tag has a unique global identification code,by sewing a dual frequency laundry tag on each piece of linen.In the entire use of linen,users can do batch reading and check the linern pretty quickly by RFID reader, automatically record the use of linen,washing times. The dual frequency laundry tag is engineered to withstand industrial dyeing processes, as well as domestic and commercial washing challenges, ensuring durability and longevity,welcome to consult the UHF laundry tag quotation.
| Material: | polyester |
| Dimensions: | 70*20mm(1.4*1.4 in) |
| Working Temp: | -20~+85℃(-68~+185°F)/8~95%RH |
| Warranty: | 200 washing cycles or 3 years,whichever comes first |
| RFID Standard: | UHF: ISOIEC 18000-6C, EPC Global GEN2 V2.0 HF: ISOIEC 14443 TYPE A; NFC: FORUM TYPE2 |
| Chip Type: | Qstar-6S |
| Memory: | 160 bits or 256 bits of EPC for UHF 96 bits or 128 bits of TID for UHF Up to 2K bits of User for UHF and HF |
| Read Range(HF Desktop Reader) | HF:2.0 cm(14.2MHz) |
| Read Range(Fixed Reader): | 3.8m(12.5ft),on clothes; 4.2m(13.8ft),in air |
| Read Range(Handheld Reader): | 1.6m(5.0ft),on cloth es; 2.0m(6.6ft),in air |
| Washing Method: | Laundry, Dry Cleaning |
| Water Extraction Pressure: | 60 bars |
| Chemical Resistance: | Detergent,Softener,Bleach(Oxygen/Chlorine),Alkali |
| Washing Temperature: | 90°C(194°F)/15 minutes |
| Pre-drying in Tumble: | 180°C(356°F)/30 minutes |
| Ironing Tempereature: | 185°C(365°F)/10 seconds |
| Sterilization Tempereature: | 135°C(275°F)/20 minutes |

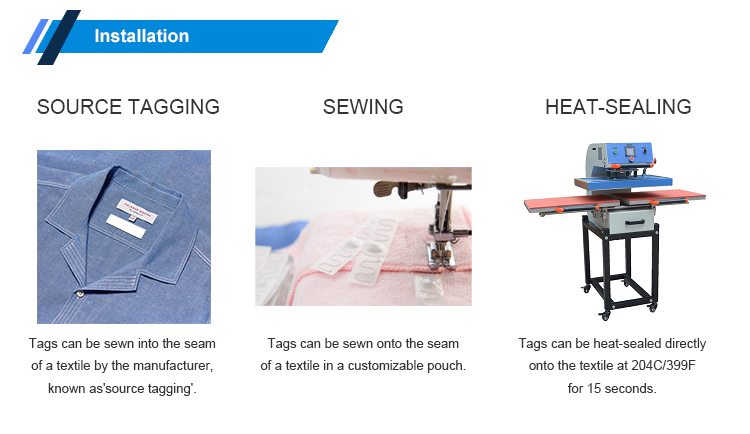

| Installation: | Sewn inside the hem or pouch |
| Customization: | Logo, barcode/QR code, number printing, |

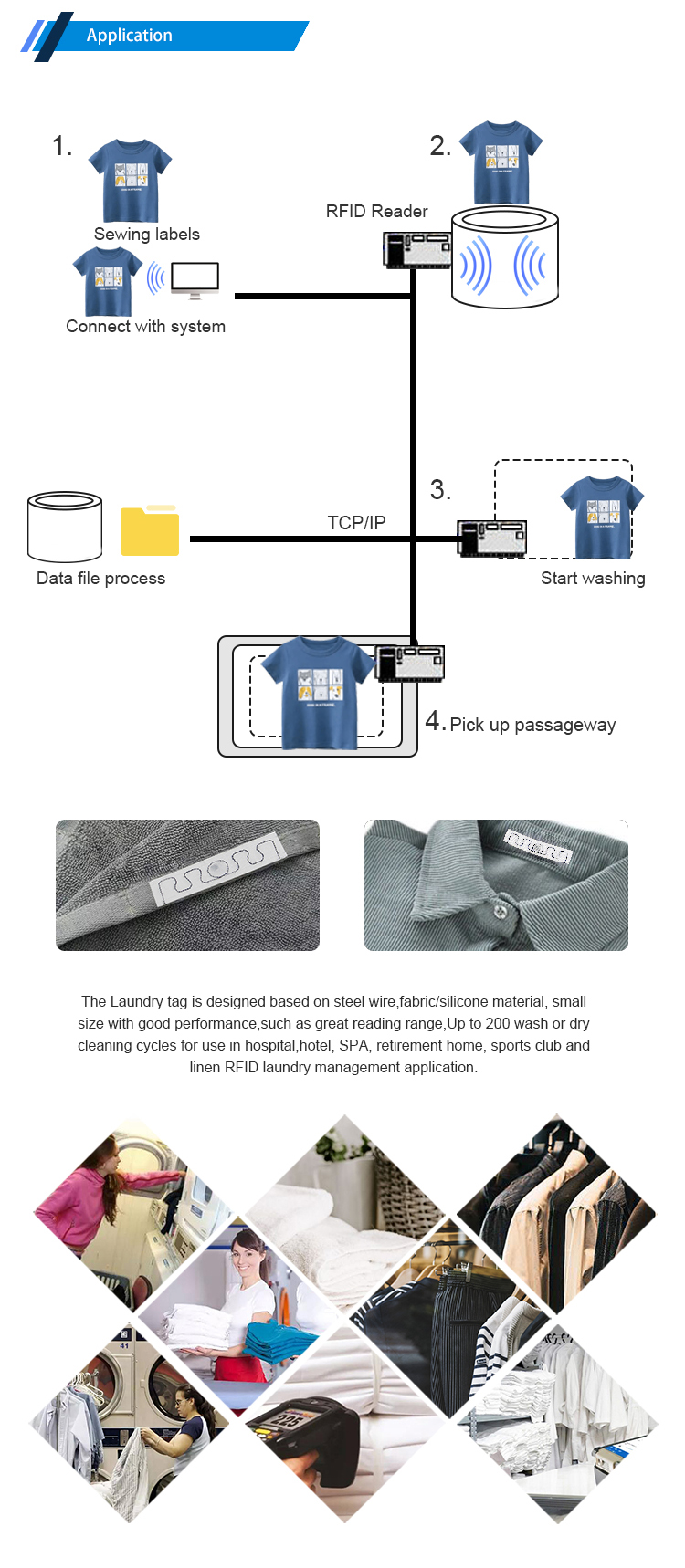

| Application: | Industrial washing/Management of uniforms Medical apparel management/Military clothing management |
FAQ
Q: 1. Why Chooseus?
A: Excellent team—quick to solve problems, creative to design new items, latest RFID items are from us.
Big capacity—cost-effective and flexible to adjust production for volume and urgent orders.Strict QC factory—Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm
Q: 2. Can I get Free Samples?
A: The free sample will be offered all the time. But if you want customized samples,it would be charged.
Q: 3. OEM & ODM available?
A: We offer label design & selection, antenna design and manufacturing.
Q:4.How Long is your delivery time?
A:For small order in stock we will ship out within 1-2 working days. For bulk orders or customized orders,it will take about 5~10 working days according to order quantity.
Q:5.What is your MOQ?
A:It's usually 1000pcs depending on different products.
