Model No: KLO3323

33*23*1.4mm NXP Ucode 9XE RFID UHF Flexible on-metal label

This small flexible metal tag is specially developed for the management of metal objects with limited size. RFID mini metal tag has the advantages of small size, metal resistance and good reading distance.
minimum order :
1 piece
Quantity :
add to cart
Contact Now

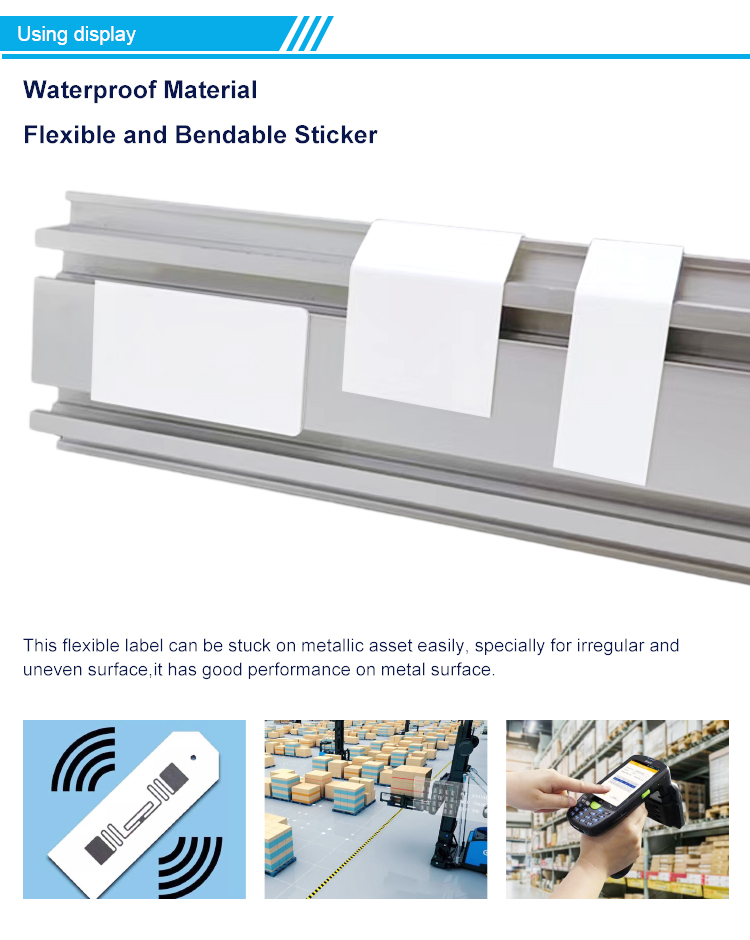

This type of RFID mini metal tag measures just 33x23x1.4mm, UHF small metal label combines an ultra-thin, bendable form factor with advanced anti-metal technology, making it ideal for applications where space is limited and metal surfaces are unavoidable. RFID small flexible metal tag features a flexible substrate—crafted from durable, weather-resistant materials like high-performance polymer or epoxy—that allows UHF small metal label conform seamlessly to curved, irregular, or small metal objects such as tools, pipes, machinery components, and electronic devices, ensuring secure adhesion without compromising readability.

mini metal tag


Model:
KLO3323
Material:

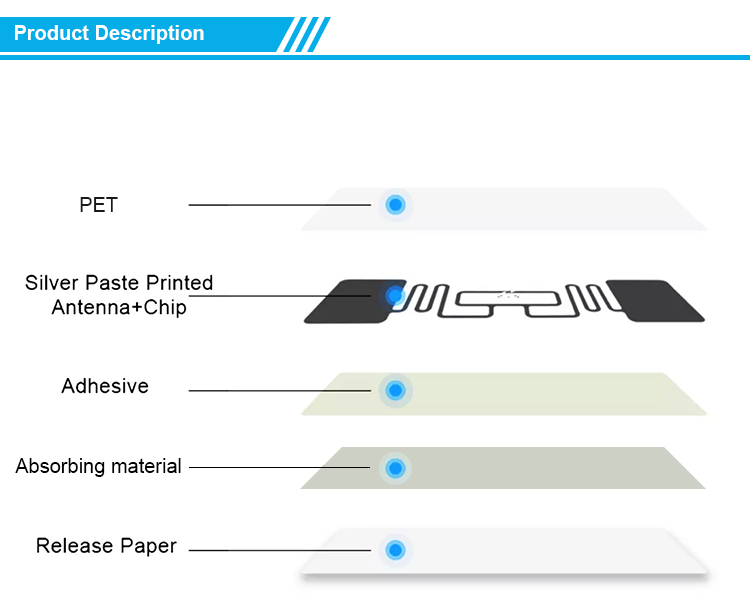

PET/Aluminum Foil/Foam
Dimensions:
33x23x1.4mm(LxWxT)
Working Temp:
-40~ +85℃
Survive Temp:
-40~+120℃
IP Rating:
IP68,test for 5 hours at 1m deep water
RFID Standard:
EPC C1G2 (ISO18000-6C)
Chip Type:
NXP Ucode 9XE
EPC Memory:
128bits
TID  Memory:
96bits
Read Range(Fixed Reader):
FCC: 7.5m，on metal； 3.0m，in air
FCC: 3.5m，on metal； 1.5m，in air
Read Range(Handheld Reader):
Data Storage:> 10 years
rewrite:
100,000 times
Installation:
Adhesive
Support Printer:
SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
Customization:
Logo, barcode/QR code, number printing, encoding, antenna design,etc.
Package:
Reel core inner dimension: 76.2mm/ 3” , 800pcs/roll.

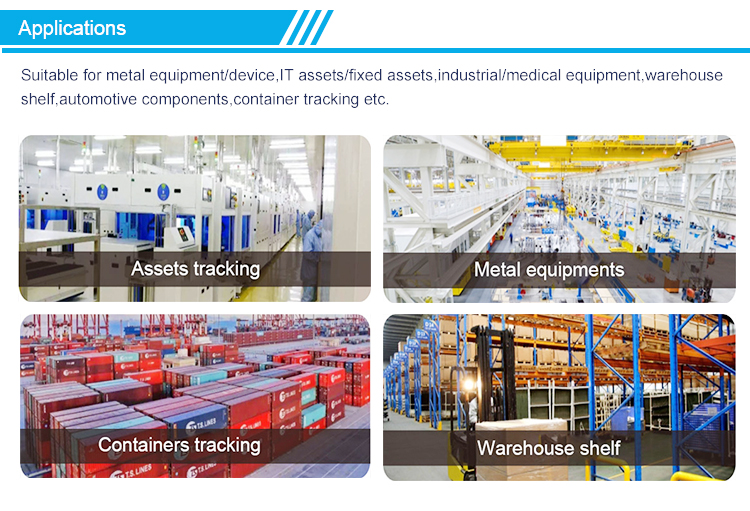

Application:
Metallic container tracking
Equipment&device tracking
Warehouse shelf tracking
Automotive components tracking
IT asset tracking, etc.


small metal labelsmall flexible metal tag

small flexible metal tag

small flexible metal tag



small flexible metal tagsmall flexible metal tag

Q1:Could I get a sample before place an order?
A:Yes,we can offer the sample for you to test,please let us know your requirements.
Q2:How Long is your delivery time?
A:For small order in stock we will ship out within 1-2 working days. For bulk orders or customized orders,

it will take about 5~10 working days according to order quantity.
Q3:Do you accept OEM orders?
A:Yes.We accept OEM/ODM orders.
Q4:What is your MOQ?
A:It's usually 100pcs depending on different products.
Q5:What is plate fee?
A:If you need to customized your size,logo and craft,which is different from our standard process,there

may exist a plate making fee.
Q6:How to guarantee the quality of your products?
A1:Strict detection during production and testing 100% before shipment.
A2:Strict sampling inspection on products before shipment and intact product packaging.
