Model No: 60*20mm
60*20mm U8/M730 UHF Laundry Tag
Flexible Textile Laundry Tag, NXP Ucode8 chip type with 128 bits EPC memory withstand more than 200 industrial washing cycles,pressure and high temperature resistance with sewing or heat sealing installation.
minimum order :
1 piece
Quantity :
Subscribe to our Newsletter

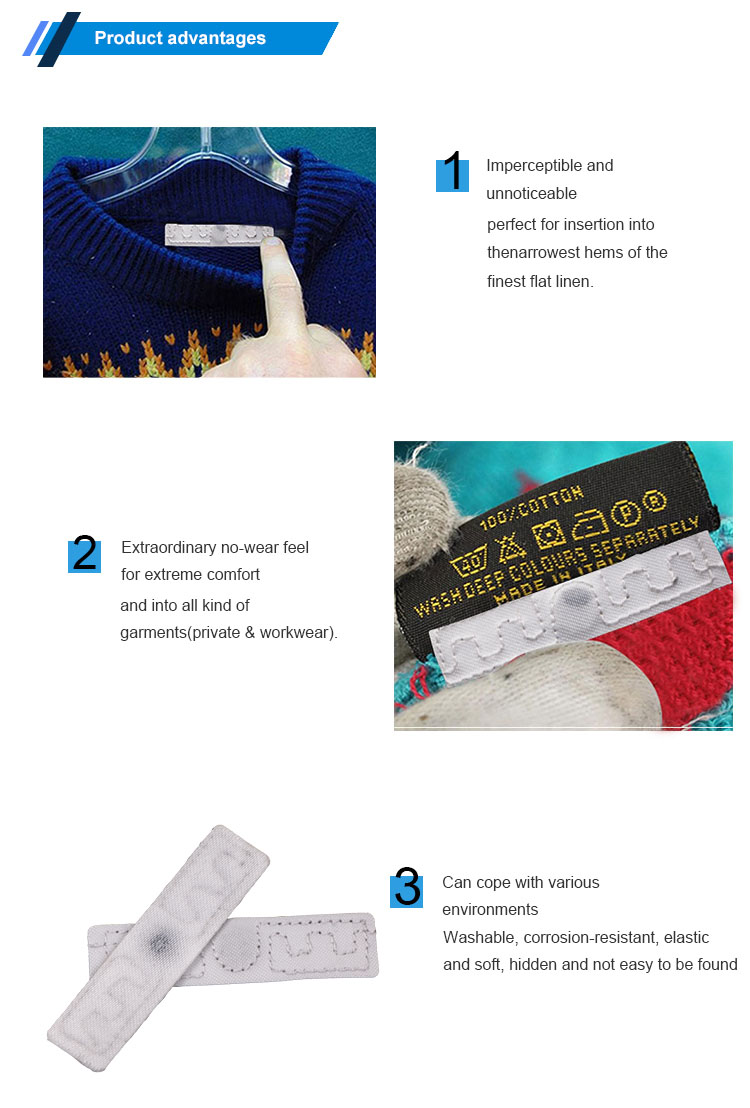

Flexible Textile Laundry Tag based on flexible antenna and woven, special for linen laundry management. The tag can withstand more than 200 industrial washing cycles, with thin thickness, long reading distance, pressure and high temperatureresistance. waterproof laundry tags have a unique global identification code,by sewing/heat sealing a tag on each piece of linen.
| Material: | polyester |
| Dimensions: | 60*20mm(Optional) |
| Working Temp: | -20~+85℃(-68~+185°F)/8~95%RH |
| Warranty: | 200 washing cycles or 3 years,whichever comes first |
| RFID Standard: | EPC C1G2 (ISO18000-6C) |
| Chip Type: | NXP Ucode 8/Impinj M730 |
| EPC Memory: | 128 bits |
| TID Memory: | 96 bits |
| Read Range(Fixed Reader): | 11m |
| Read Range(Handheld Reader): | 8m |
| Washing Method: | Laundry, Dry Cleaning |
| Water Extraction Pressure: | 60 bars |
| Chemical Resistance: | Detergent,Softener,Bleach(Oxygen/Chlorine),Alkali |
| Washing Temperature: | 90°C(194°F)/15 minutes |
| Pre-drying in Tumble: | 180°C(356°F)/30 minutes |
| Ironing Tempereature: | 185°C(365°F)/10 seconds |
| Sterilization Tempereature: | 135°C(275°F)/20 minutes |

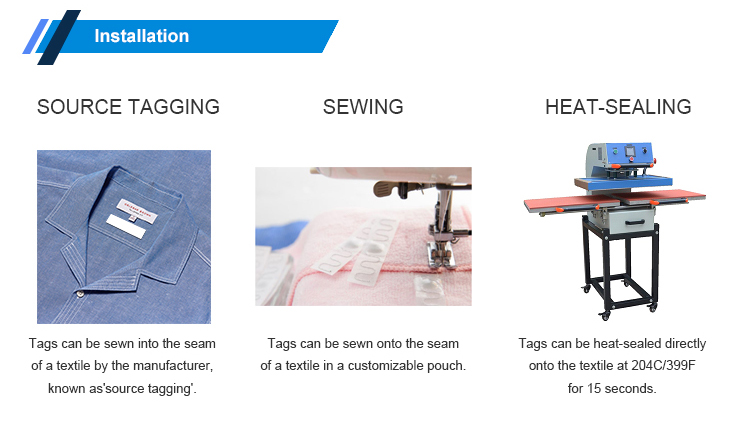

| Installation: | Sew:Sewn inside the hem or pouch Heat-sealing:Heat-seal the tag onto the textile at 210°C and 0.6-0.8MPa for 20 seconds |
| Customization: | Logo, barcode/QR code, number printing, |

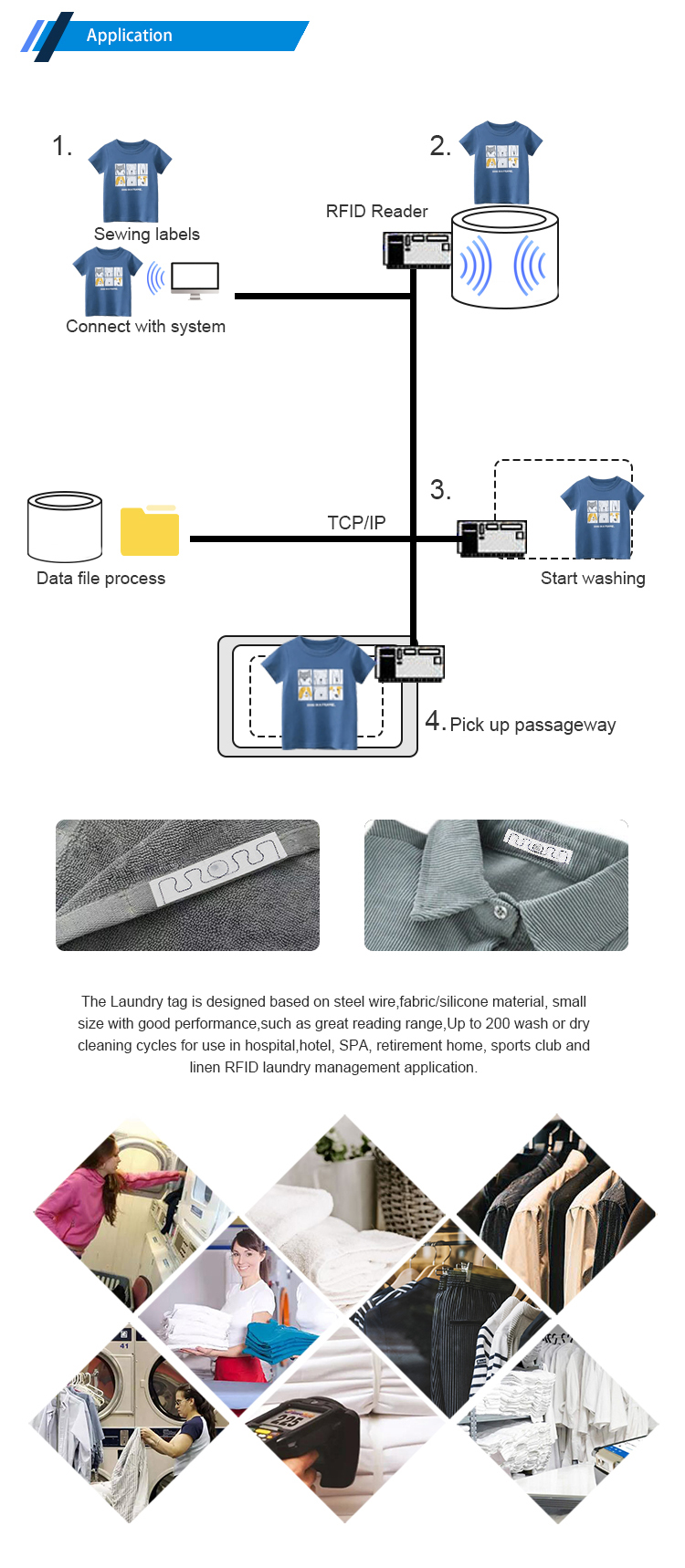

| Application: | Logistics sorting Apparel retail and management Assets tracking management, etc. |
