Model No: Aqua 58*15mm

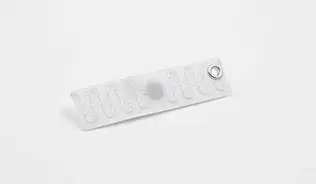

58*15mm U8/M730 UHF Laundry Tag
RFID UHF laundry tag with 200 washing times laundry tag with pressure and 135 ℃ Sterilization Tempereature. rfid washable tag,Washable laundry RFID tag withstand 60 bar.
minimum order :
1 piece
Quantity :
Subscribe to our Newsletter
laundry tags for clothes based on flexible antenna and woven, special for linen laundry management. The tag can withstand more than 200 industrial washing cycles, with thin thickness, long reading distance, pressure and high temperatureresistance.
| Material: | polyester |
| Dimensions: | 58*15mm(Optional) |
| Working Temp: | -20~+85℃(-68~+185°F)/8~95%RH |
| Warranty: | 200 washing cycles or 3 years,whichever comes first |
| RFID Standard: | EPC C1G2 (ISO18000-6C) |
| Chip Type: | NXP Ucode 8/Impinj M730 |
| EPC Memory: | 128 bits |
| TID Memory: | 96 bits |
| Read Range(Fixed Reader): | US:12.5m; EU:9m |
| Read Range(Handheld Reader): | US:8.5m; EU:6m |
| Washing Method: | Laundry, Dry Cleaning |
| Water Extraction Pressure: | 60 bars |
| Chemical Resistance: | Detergent,Softener,Bleach(Oxygen/Chlorine),Alkali |
| Washing Temperature: | 90°C(194°F)/15 minutes |
| Pre-drying in Tumble: | 180°C(356°F)/30 minutes |
| Ironing Tempereature: | 185°C(365°F)/10 seconds |
| Sterilization Tempereature: | 135°C(275°F)/20 minutes |

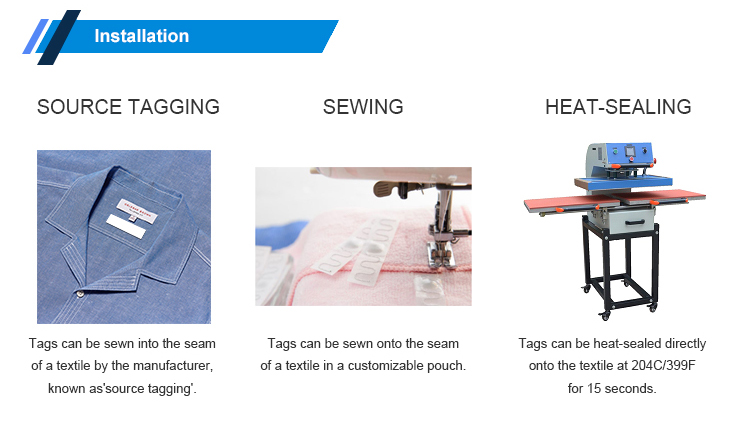

| Installation: | Sew:Sewn inside the hem or pouch Heat-sealing:Heat-seal the tag onto the textile at 210°C and 0.6-0.8MPa for 20 seconds |
| Customization: | Logo, barcode/QR code, number printing, |

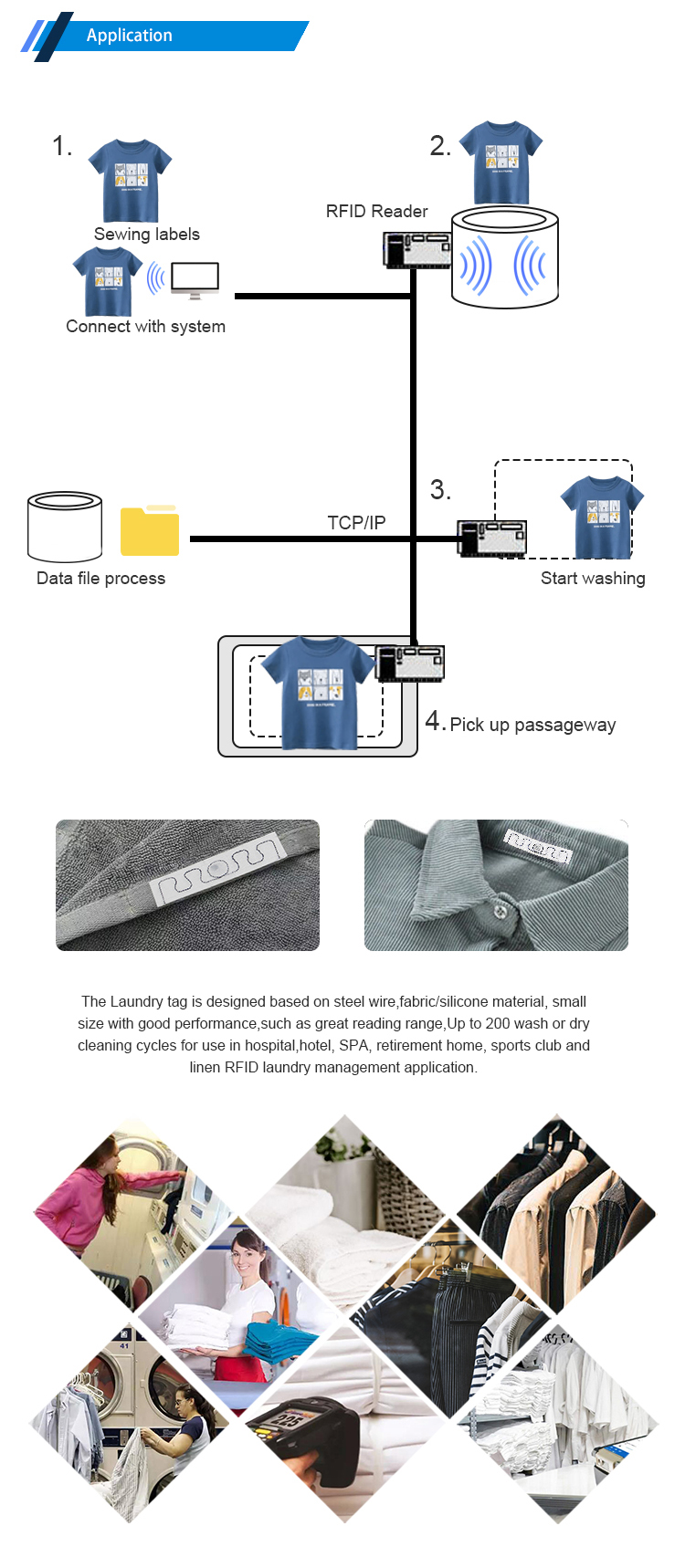

| Application: | Logistics sorting Apparel retail and management Assets tracking management, etc. |
FAQ
Q1:Could I get a sample before place an order?
A:Yes,we can offer the sample for you to test,please let us know your requirements.
Q2:How Long is your delivery time?
A:For small order in stock we will ship out within 1-2 working days. For bulk orders or customized orders,it will take about 5~10 working days according to order quantity.
Q3:Do you accept OEM orders?
A:Yes.We accept OEM/ODM orders.
Q4:What is your MOQ?
A:It's usually 1000pcs depending on different products.
Q5:What is plate fee?
A:If you need to customized your size,logo and craft,which is different from our standard process,there may exist a plate making fee.
Q6:How to guarantee the quality of your products?
A1:Strict detection during production and testing 100% before shipment.
A2:Strict sampling inspection on products before shipment and intact product packaging.
