70*30*1mm NXP Ucode 8 RFID UHF Flexible on-metal label
The rfid tags metal overcome some of the problems traditional rfid sticker suffer when near metal, such as detuning and reflecting of the RFID signal, which can cause poor tag read range, phantom reads, or no read signal at all. Metal tag rfid has good performance on metal surface, can be print and encoding by RFID printer.
| Model: | KLO7055 |

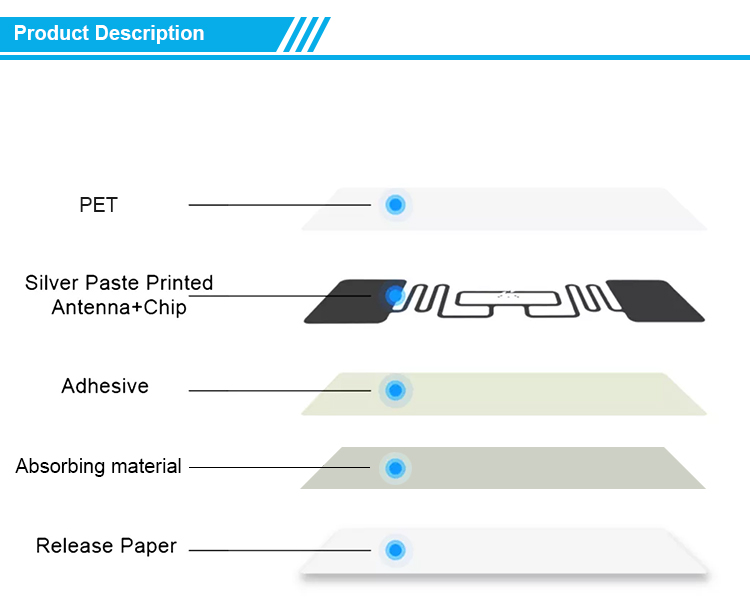

| Material: | PET/Aluminum Foil/Foam |
| Dimensions: | 70x30x1mm(LxWxT) |
| Working Temp: | -40~ +85℃ |
| Survive Temp: | -40~+120℃ |
| IP Rating: | IP68,test for 5 hours at 1m deep water |
| RFID Standard: | EPC C1G2 (ISO18000-6C) |
| Chip Type: | NXP Ucode 8 |
| EPC Memory: | 128 bits |
| TID Memory: | 96bits |
Read Range(Fixed Reader): | FCC:12m,on metal;5.8m,in air |
Read Range(Handheld Reader): | FCC:6.0m,on metal;3.0m,in air |
| Data Storage: | > 10 years |
| Re-write: | 100,000 times |
| Installation: | Adhesive |
| Support Printer: | SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc. |
| Customization: | Logo, barcode/QR code, number printing, encoding, antenna design,etc. |
| Package: | Reel core inner dimension: 76.2mm/ 3” , 500pcs/roll. |

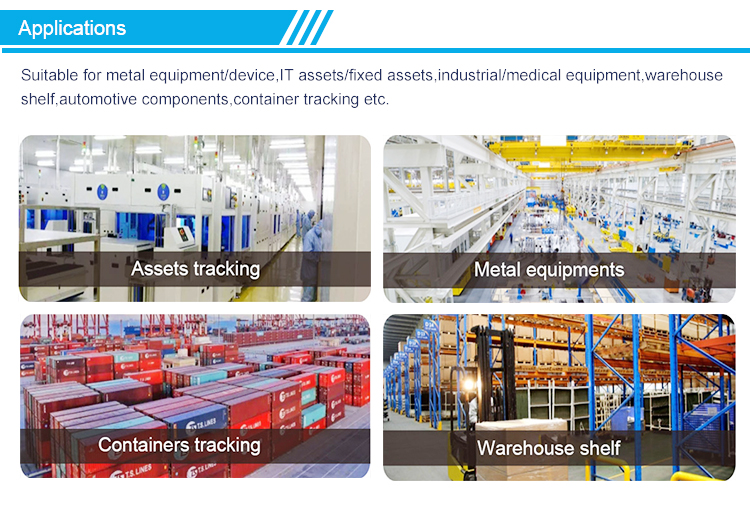

| Application: | Metallic container tracking | Equipment&device tracking Warehouse shelf | Automotive components tracking IT asset tracking, etc. |
Q1:Could I get a sample before place an order?
A:Yes,we can offer the sample for you to test,please let us know your requirements.
Q2:How Long is your delivery time?
A:For small order in stock we will ship out within 1-2 working days. For bulk orders or customized orders,
it will take about 5~10 working days according to order quantity.
Q3:Do you accept OEM orders?
A:Yes.We accept OEM/ODM orders.
Q4:What is your MOQ?
A:It's usually 1000pcs depending on different products.
Q5:What is plate fee?
A:If you need to customized your size,logo and craft,which is different from our standard process,there
may exist a plate making fee.
Q6:How to guarantee the quality of your products?
A1:Strict detection during production and testing 100% before shipment.
A2:Strict sampling inspection on products before shipment and intact product packaging.
