Model No: 50*12mm
50*12mm U8/M730 UHF Laundry Tag
UHF Laundry tag based on flexible antenna and woven, can withstand more than 200 industrial washing cycles, 8m long reading distance,pressure and high temperature resistance with a unique global identification code, sewing and heat sealing installation.
minimum order :
1 piece
Quantity :
Subscribe to our Newsletter

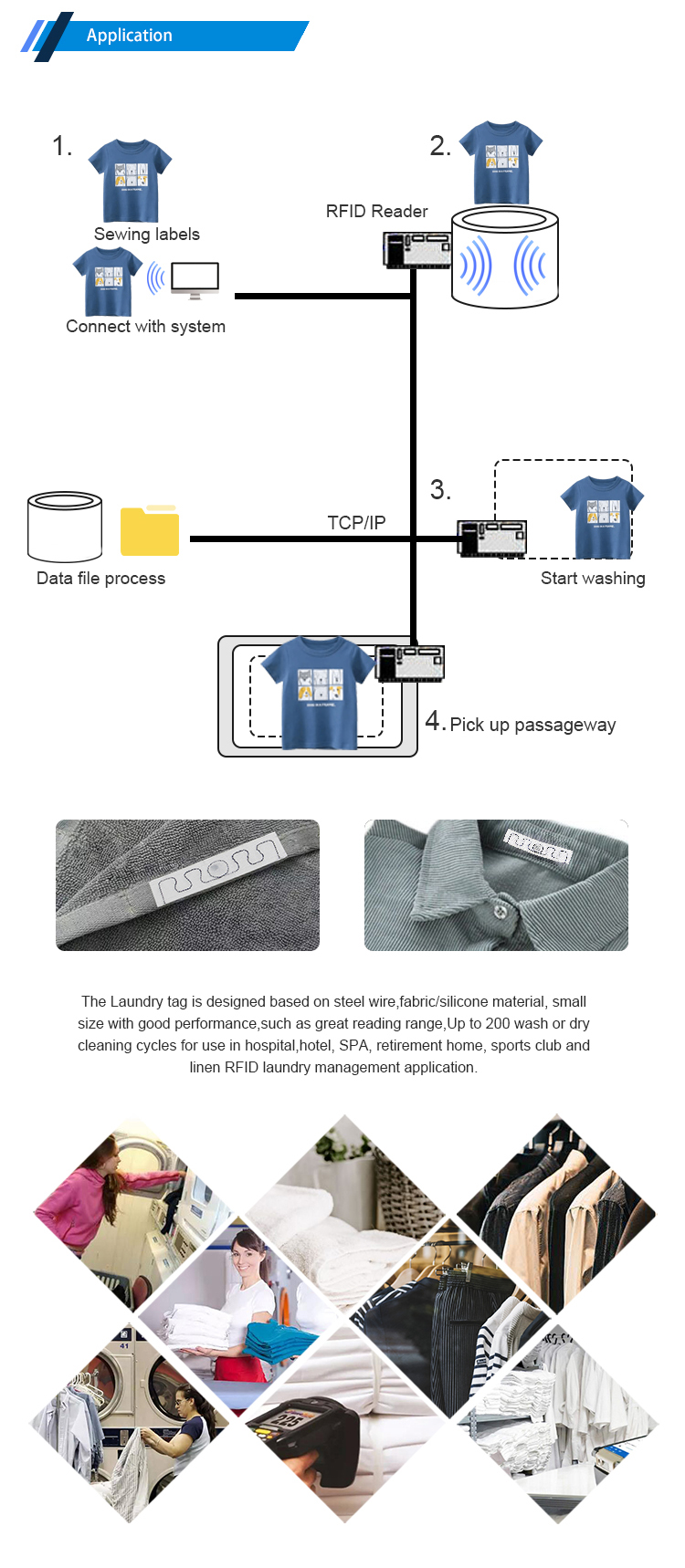

In the entire use of linen, users can do batch reading and check the linern pretty quickly by RFID reader, automatically record the use of linen, washing times. It will make the handover of washing tasks simple and transparent, and greatly improves the efficiency of inventory inspection by the UHF laundry tag. RFID UHF Laundry tag can withstand more than 200 industrial washing cycles, 8m long reading distance,pressure and high temperature resistance
Material: | polyester |
Dimensions: | 50*12mm(Optional) |
Working Temp: | -20~+85℃(-68~+185°F)/8~95%RH |
Warranty: | 200 washing cycles or 3 years,whichever comes first |
RFID Standard: | EPC C1G2 (ISO18000-6C) |
Chip Type: | NXP Ucode 8/Impinj M730 |
EPC Memory: | 128 bits |
TID Memory: | 96 bits |
Read Range(Fixed Reader): | 6m |
Read Range(Handheld Reader): | 2.5m |
Washing Method: | Laundry, Dry Cleaning |
Water Extraction Pressure: | 60 bars |
Chemical Resistance: | Detergent,Softener,Bleach(Oxygen/Chlorine),Alkali |
Washing Temperature: | 90°C(194°F)/15 minutes |
Pre-drying in Tumble: | 180°C(356°F)/30 minutes |
Ironing Tempereature: | 185°C(365°F)/10 seconds |
Sterilization Tempereature: | 135°C(275°F)/20 minutes |

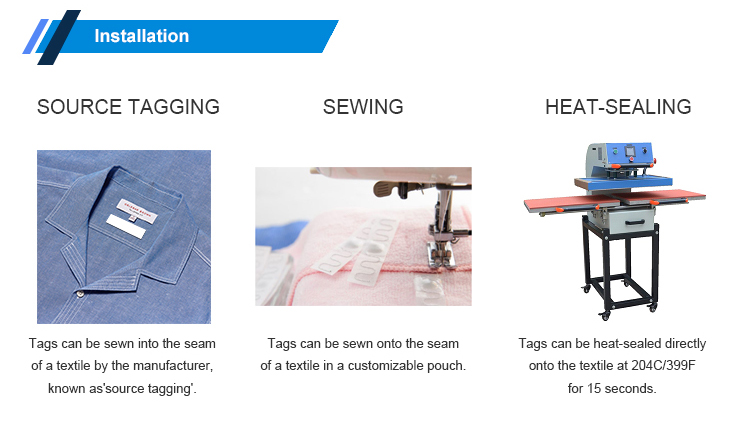

Installation: | Sew:Sewn inside the hem or pouch Heat-sealing:Heat-seal the tag onto the textile at 210°C and 0.6-0.8MPa for 20 seconds |
Customization: | Logo, barcode/QR code, number printing, |
Application: | Logistics sorting Apparel retail and management Assets tracking management, etc. |
FAQ
Q: 1. Why Chooseus?
A: Excellent team—quick to solve problems, creative to design new items, latest RFID items are from us.
Big capacity—cost-effective and flexible to adjust production for volume and urgent orders.Strict QC factory—Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm
Q: 2. Can I get Free Samples?
A: The free sample will be offered all the time. But if you want customized samples,it would be charged.
Q: 3. OEM & ODM available?
A: We offer label design & selection, antenna design and manufacturing.
Q:4.How Long is your delivery time?
A:For small order in stock we will ship out within 1-2 working days. For bulk orders or customized orders,it will take about 5~10 working days according to order quantity.
Q:5.What is your MOQ?
A:It's usually 1000pcs depending on different products.
