Model No: 58*15mm
58*15mm U8/M730 UHF Laundry Tag
Hot sale dimension 58*15mm laundry tag for hotel/hospital linen tracking management withstand high temperature with long reanding range.
minimum order :
1 piece
Quantity :
Subscribe to our Newsletter

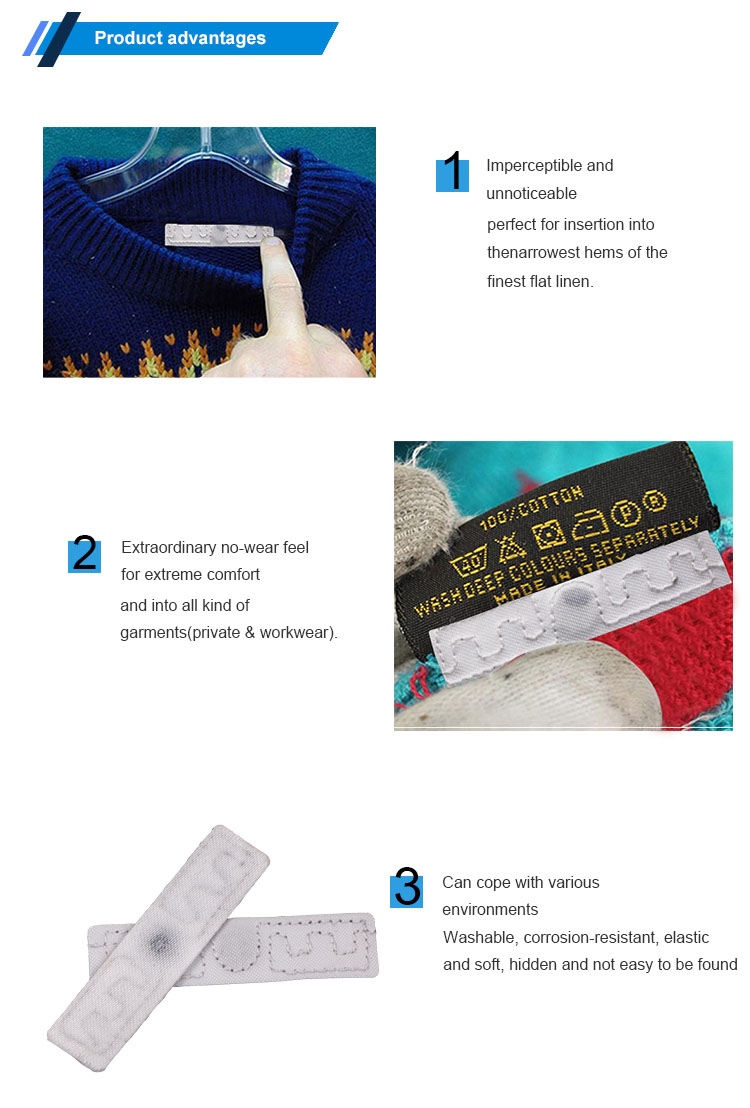

RFID UHF laundry tags withstand more than 200 industrial washing cycles, waterproof rfid laundry tag/waterproof clothing tag with thin thickness, long reading distance, pressure and high temperature resistance.
| Material: | polyester |
| Dimensions: | 58*15mm(Optional) |
| Working Temp: | -20~+85℃(-68~+185°F)/8~95%RH |
| Warranty: | 200 washing cycles or 3 years,whichever comes first |
| RFID Standard: | EPC C1G2 (ISO18000-6C) |
| Chip Type: | NXP Ucode 8/Impinj M730 |
| EPC Memory: | 128 bits |
| TID Memory: | 96 bits |
| Read Range(Fixed Reader): | US:12.5m; EU:9m |
| Read Range(Handheld Reader): | US:8.5m; EU:6m |
| Washing Method: | Laundry, Dry Cleaning |
| Water Extraction Pressure: | 60 bars |
| Chemical Resistance: | Detergent,Softener,Bleach(Oxygen/Chlorine),Alkali |
| Washing Temperature: | 90°C(194°F)/15 minutes |
| Pre-drying in Tumble: | 180°C(356°F)/30 minutes |
| Ironing Tempereature: | 185°C(365°F)/10 seconds |
| Sterilization Tempereature: | 135°C(275°F)/20 minutes |
| Installation: | Sew:Sewn inside the hem or pouch Heat-sealing:Heat-seal the tag onto the textile at 210°C and 0.6-0.8MPa for 20 seconds |
| Customization: | Logo, barcode/QR code, number printing, |

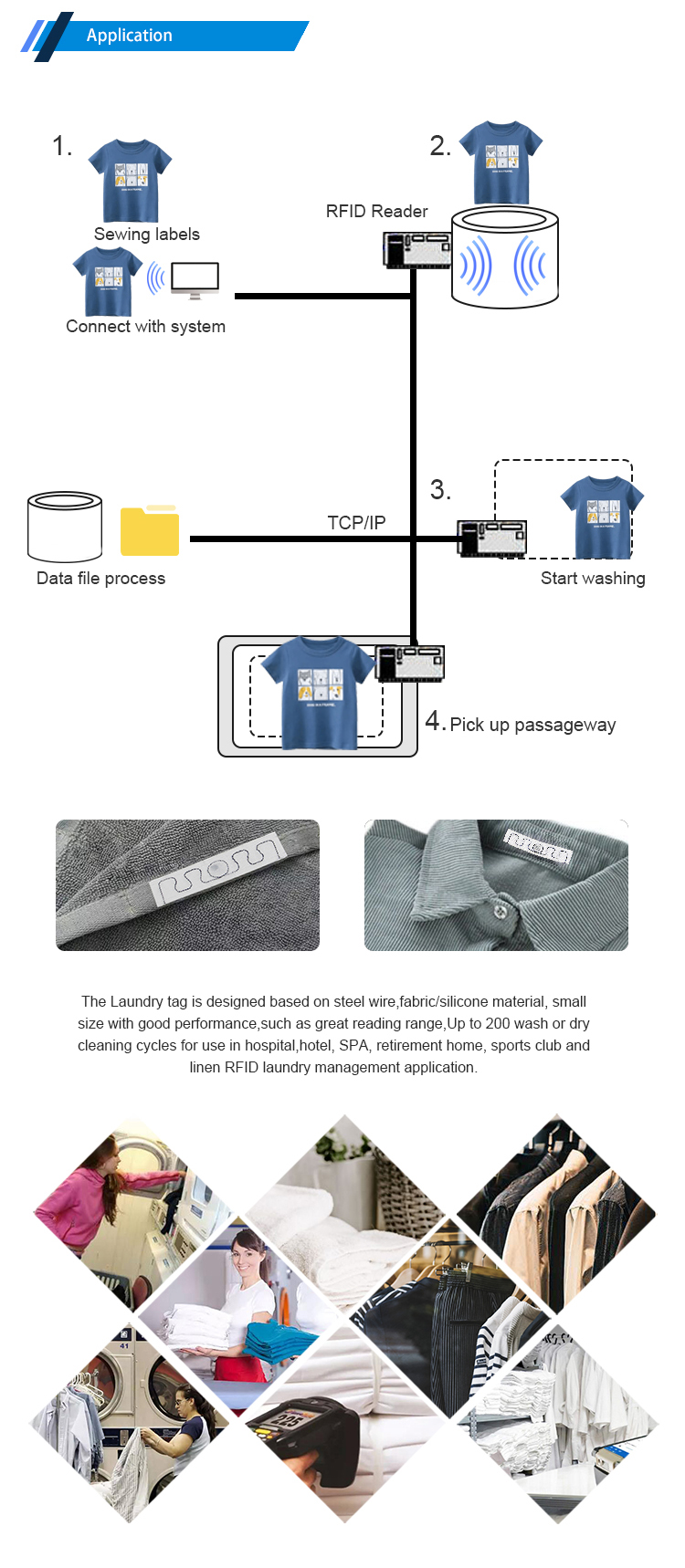

| Application: | Logistics sorting Apparel retail and management Assets tracking management, etc. |
FAQ
Q1:Could I get a sample before place an order?
A:Yes,we can offer the sample for you to test,please let us know your requirements.
Q2:How Long is your delivery time?
A:For small order in stock we will ship out within 1-2 working days. For bulk orders or customized orders,it will take about 5~10 working days according to order quantity.
Q3:Do you accept OEM orders?
A:Yes.We accept OEM/ODM orders.
Q4:What is your MOQ?
A:It's usually 1000pcs depending on different products.
Q5:What is plate fee?
A:If you need to customized your size,logo and craft,which is different from our standard process,there may exist a plate making fee.
Q6:How to guarantee the quality of your products?
A1:Strict detection during production and testing 100% before shipment.
A2:Strict sampling inspection on products before shipment and intact product packaging.
